MANHOLE REF S14
MANHOLE REF S15
EASTING 813
NORTHING 638
EASTING 820
NORTHING 647
COVER LEVEL 21.37
COVER LEVEL 21.27
DEPTH 560
DEPTH 530
19.85 1520mm C 300mm
19.79 1480mm C 300mm
IN B 19.95 1320mm
IN C 19.95 1320mm
150mm 150mm
FMH 15
19.85 1520mm C 300mm
19.78 1490mm C 300mm
N
N
SWMH 15
S15
S15
F15
F15
S14
S14
F14
F14
X
X
C A
B
A
300mm dia Surface Water Sewer
Existing Surface water drain connected existing surface water MUA Sewer
Surface water drainage to connect to existing surface water mains either via rights of connection to SW drain in neighboring property as indicated or into new connection in road in front of driveway.

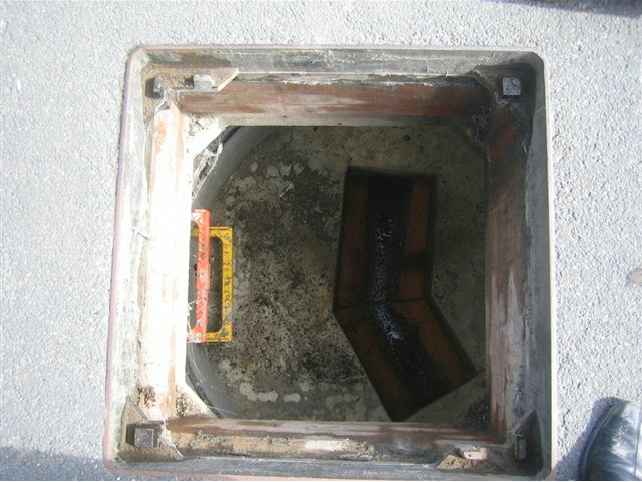

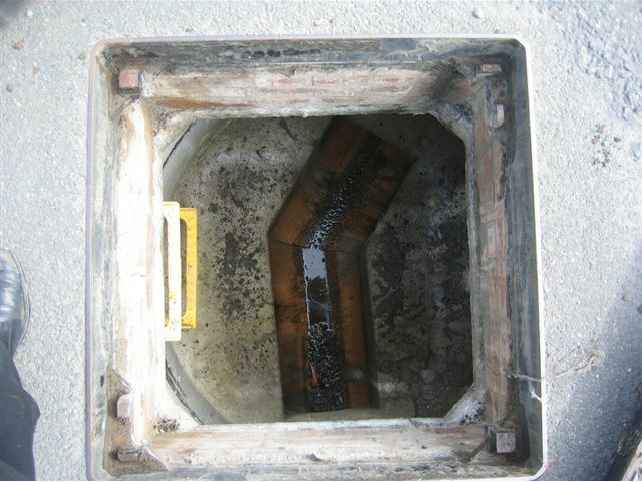

SW Inspection chamber
FMH 14
Final connection position will be determined following invasive survey during building works to satisfaction of building control and MUA
Existing 100mm SW drain.
Prior to any drainage installtions taking place an application for connection to main sewer will be made to MUA and relevant connection charges paid
SW Inspection chamber
SWMH 14
100mm SW drain. Driveway laid to fall to drainage channel. 100mm SW drain. RWP & trapped gully Threshold Drainage
RWP & trapped gully Aco Drainage Channel Patio laid to fall to drainage channel.
RE.
RWP & trapped gully
NOTES:
1. Copyright of this drawing is the property of Hartford Homes Ltd. and may not be reproduced without their permission.
2. Written dimensions to be used in preference to scaled dimensions at all times. All dimensions and levels to be verified on site and any discrepancies to be reported to the technical department.
3. This drawing is to be read in conjunction with all related Architects, Consultants and Sub-Contractors drawings and specifications.
4. All dimensions indicated on this drawing are structural dimensions and do not allow for thickness of finishes.
5. If being viewed by purchaser, this drawing is not to be inferred to as definitive and is indicative only.
-- -- --
REVISIONS DATE
STATUS
PLANNING
Hartford
Hartford
Hartford
www.hartford.im
Middle river, Douglas, Isle of Man, IM2 1AL, British Isles Tel: 01624 631000 Fax: 01624 631001 Web: www.hartford.im e-mail: [email protected]
PROJECT
Land Adjacent 17 Royal Park, Royal Park, Ramsey. IM8 3UF
DRAWING
Surface Water Drainage
Hart 7
CONTRACT
JIP ..
DRAWN BY
CHECKED
Mar 2023
SCALE 1:50 @ A1
DATE
DRAWING No
