1. Copyright of this drawing is the property of Hartford Homes Ltd. and may not be reproduced without their permission.
2. Written dimensions to be used in preference to scaled dimensions at all times. All dimensions and levels to be verified on site and any discrepancies to be reported to the technical department.
3. This drawing is to be read in conjunction with all related Architects, Consultants and Sub-Contractors drawings and specifications.
4. All dimensions indicated on this drawing are structural dimensions and do not allow for thickness of finishes.
5. If being viewed by purchaser, this drawing is not to be inferred to as definitive and is indicative only.
North
Existing Line of Fencing as details below.
CEZ
Existing Line of Fencing as details below.
Proposed Dwelling
Hatched area indicates extent of CEZ where access will be required to excavate foundations and erect scaffolding. Care has been taken in these areas to avoid RPA's. Access to this area will be ONLY be permitted once the project Arborist has been advised and his recommendations provided to site team.
Existing boundary hedge to be pruned back prior to commencement of building works Existing Line of Fencing as details below. Existing Tree/large Shrub in neighboring garden. Existing Line of Fencing as details below.
CEZ
RPA
Existing overhanging tree branches to be pruned back by a qualified Arborist prior to building works commencing. Existing Tree in neighboring garden. Existing boundary hedge to be pruned back prior to commencement of building works
RPA
Existing Tree in neighboring garden.
Existing Tree in neighboring garden.
RPA
Rev A Site Monitoring note added 15/05/2023
RPA
REVISIONS DATE
STATUS
PLANNING
Hartford
Hartford
Hartford
www.hartford.im
–
Middle river, Douglas, Isle of Man, IM2 1AL, British Isles Tel: 01624 631000 Fax: 01624 631001 Web: www.hartford.im e-mail: [email protected]
PROJECT
Land Adjacent 17 Royal Park, Royal Park, Ramsey. IM8 3UF
‘ ’
‘ ’
DRAWING
Tree Protection Plan
Hart 7
CONTRACT
JIP ..
DRAWN BY
CHECKED
Mar 2023
SCALE 1:50 @ A1
DATE
DRAWING No

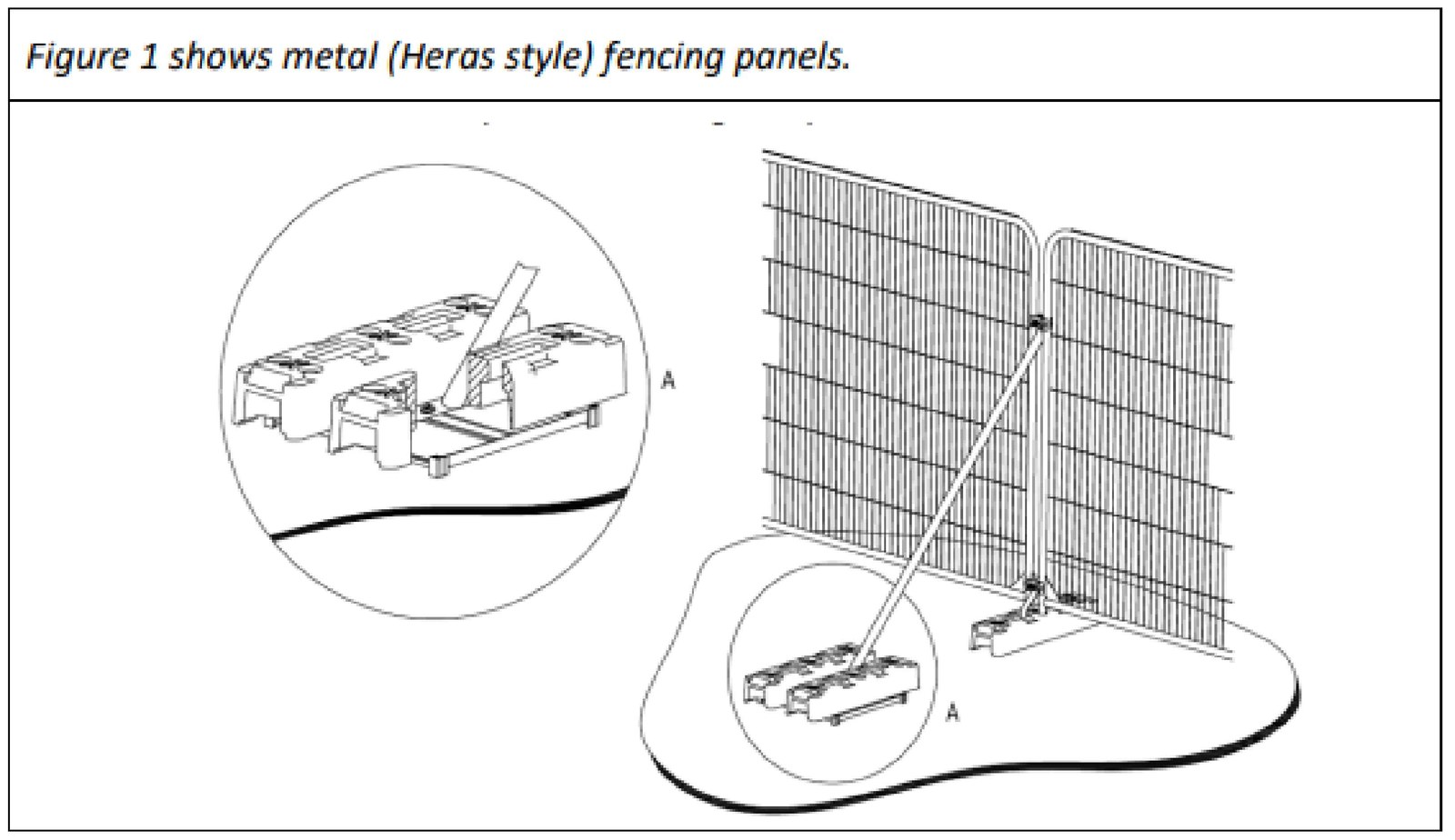

Technical line drawing illustrating the assembly and base weights of metal Heras-style temporary fencing panels.
