Arboricultural Method Statement Addendum

6229, Parkfield, Ballasalla - Arboricultural Impact Assessment Addendum

BS5837:2012 Arboricultural Impact Assessment Addendum

Parkfield, Ballahick Lane, Ballasalla, IM9 2AD

Dandara Homes Limited

September 2025

Office Locations

Cambridge 1A Clifton Court, Clifton Road, Cambridge, CB1 7BN 01223 776740 London Moor Place, 1 Fore Street Avenue, London, EC2Y 9DT 020 3011 0820 Norwich Brettingham House, 98 Pottergate, Norwich, NR2 1EQ 01603 631319 Bath Newark Works, 2 Foundry Way, South Quays, Bath, BA2 3DZ 01225 690119 Manchester One St Peter’s Square, Manchester, M2 3DE 01617 111740 Edinburgh 1 Lochrin Square, 92-98 Fountainbridge, Edinburgh, EH3 9QA 01316 000319 York Stanley Harrison House, The Chocolate Works, Bishopthorpe Road, York, YO23 1DE 01904 803800

Issue Sheet

Document Prepared for: Dandara Homes Limited

BS5837:2012 Arboricultural Impact Assessment Addendum

5691, Parkfield, Arboricultural Impact Assessment Addendum

Prepared by: Name: Ryan Wilson BSc (Hons) MArborA Title: Senior Arboriculture Consultant Date: 24 September 2025

Approved by: Name: Steve Williams Title: Associate Director Date: 29 September 2025

Revision: V1.1

Contents

• 1 INTRODUCTION 4

• 1.1 APPOINTMENT 4
• 1.2 REPORT OBJECTIVES 4

• 2 UPDATED DRAWING REFERENCES 4
• 3 ASSESSMENT OF IMPACTS 5

• 3.2 UPDATE TO TREE IMPACTS 5
• 3.3 IMPACTS RELATED TO SHADE 5

Appendices

• APPENDIX 1 TREE CONSTRAINTS PLAN
• APPENDIX 2 TREE IMPACT PLAN

September 2025

1 Introduction

• 1.1 Appointment

• 1.1.1 Dandara Homes Limited appointed Lanpro Services Limited to produce an Arboricultural Impact Assessment Addendum in accordance with British Standard 5837:2012 ‘Trees in relation to design, demolition and construction’ (BS 5837:2012) to outline the changes to the original Arboricultural Impact Assessment (AIA) produced by Manx Roots Limited on the 16th of January 2025 following comments from the Department of Environment Food and Agriculture (DEFA).
• 1.1.2 This report and the accompanying appendices assess the impacts posed to the existing trees on the Site as per the standards of BS 5837:2012.
• 1.1.3 The following schedule and drawings are to be read in conjunction with this report and are included as appendices:

• • Tree Constraints Plan (Appendix 1) illustrates the locations of the surveyed trees, the assigned tree retention category (A, B, C and U), the canopy spread at the four cardinal points (north, south, east and west) and the extent of Root Protection Areas (RPA); and
• • Tree Impact Plan (Appendix 2) illustrates the tree removals, pruning and root impacts of the Development.

• 1.2 Report Objectives

1.2.1 The objective of this report is to provide further clarification and information on the treerelated impacts requested by DEFA during consultation. This Addendum must be read in conjunction with the AIA produced by Manx Roots for Parkfield, Ballahick Lane, Ballasalla, IM9 2AD on 16 January 2025.

2 Updated Drawing ReferencesTable 1: List of Updated Drawing References

Drawing Type	Manx Roots Drawing Reference<br><br>	Lanpro Updated Drawing
Tree Constraints Plan	TS-150125	Tree Constraints Plan: 6229-LAN-XX-XX-DR-A-7101-P01
Tree Removal & Impact Plan	TR-160125	Tree Impact Plan: 6229-LAN-XX-XX-DR-A-7201-P01

3 Assessment of Impacts

• 3.1.1 The arboricultural impacts of the Development have been assessed by overlaying the following plan onto the Tree Constraints Plan:

• • SP_Master Parkfield _ Proposed Plan
• • Parkfield Drainage Plan; and
• • Tree Survey Information Manx Roots.

• 3.1.2 The anticipated arboricultural impacts included in this report, therefore, only relate to the above plans and information. Should the above documents be changed, an update to this report may be necessary.

3.2 Update to Tree Impacts

• 3.2.1 The changes in impacts are as follows:
• 3.2.2 G10 Category B requires a small section to be removed to facilitate site access from the southwest of the Site (approximately 15% of the group), resulting in a minor RPA incursion into the group's retained trees. The removals within this group will mainly be restricted to smaller species, allowing the larger trees to grow into the created space.
• 3.2.3 T6504 Category B will now be protected via the use of ground protection and will no longer have an unprotected RPA incursion.

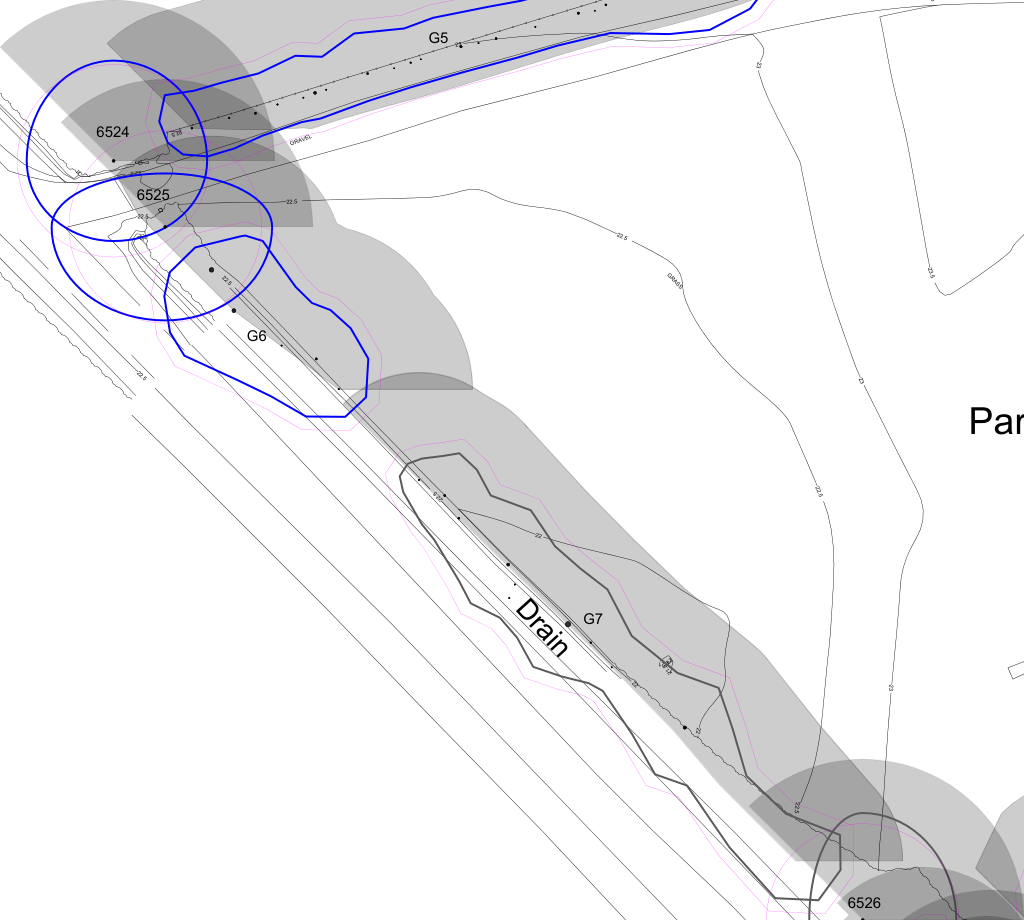

• 3.2.4 The Root Protection Areas (RPA) of T6524 and T6525, both category B, will now be protected via the use of a cellular confinement system to ensure the roots do not get damaged during the construction of a footpath.
• 3.2.5 T6515 Category C will require a 1.5 metre lateral crown reduction to facilitate the construction of the Development.

3.3 Impacts Related to Shade

3.3.1 As outlined in section 4.4 of the AIA produced by Manx Roots, there will be some pressure to prune the retained trees caused by shading. However, the shade arcs shown on the Updated Tree Impact Plan 6229-LAN-XX-XX-DR-A-7201-P01 show the shade the Development will experience at its worst (late fall through winter), and the majority of housing plots will have unshaded areas within the gardens. The benefits that these retained trees present will likely outweigh the negatives (partial shade and seasonal nuisances) and are considered an acceptable balance between the retained trees and the proposed development, as outlined in BS5837:2012, Trees in Relation to Design, Demolition and Construction – Recommendations.

End of Arboricultural Impact Assessment Addendum.

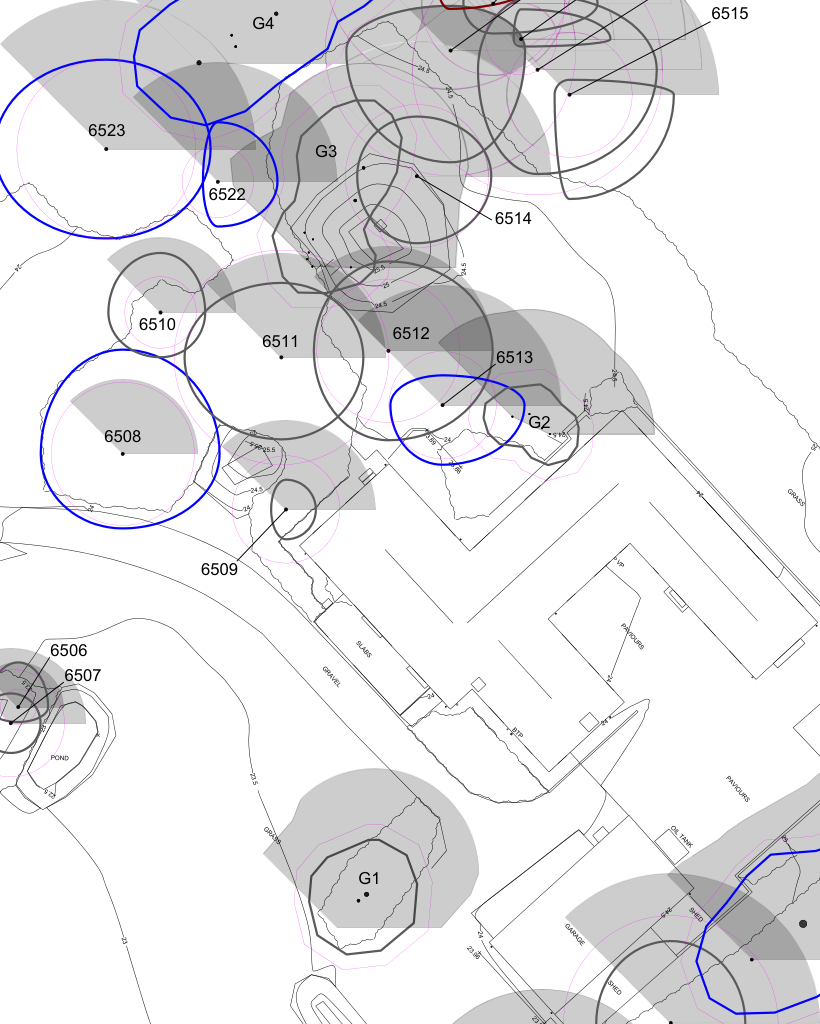

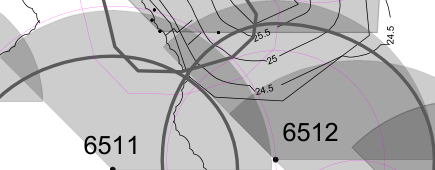

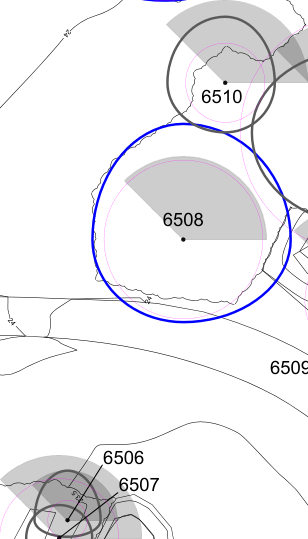

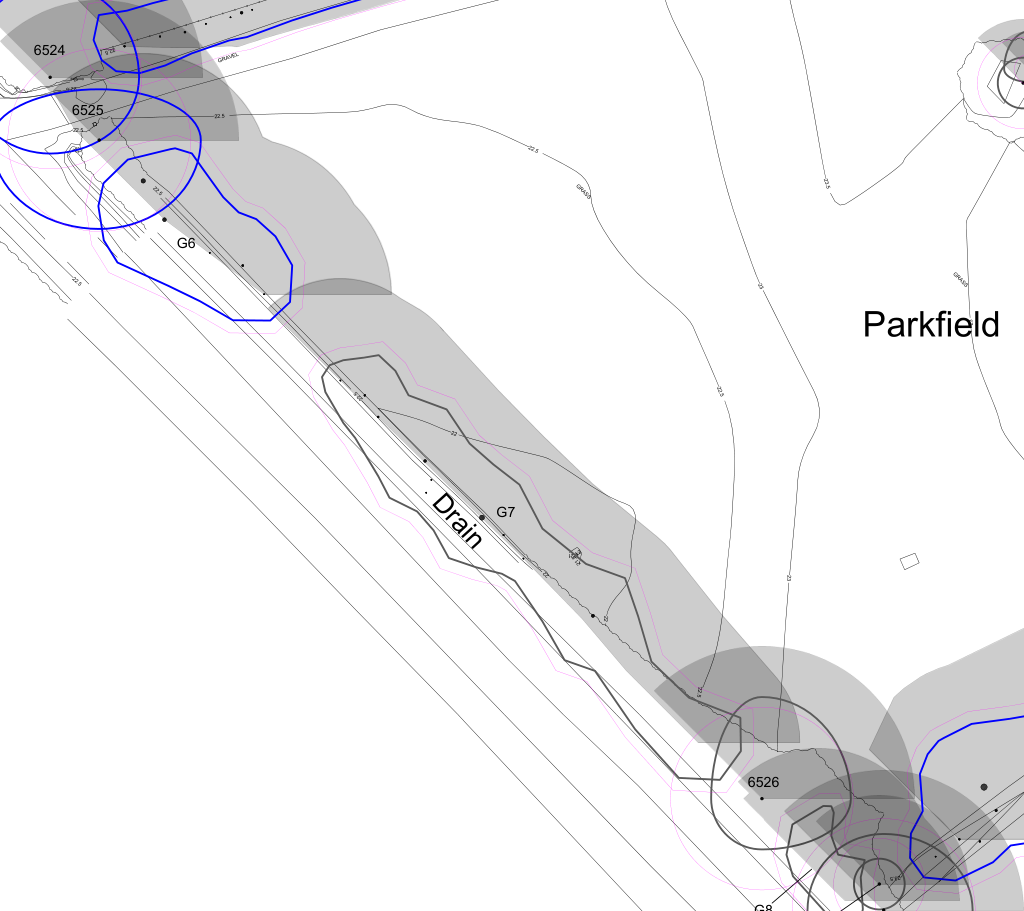

Appendix 1 Tree Constraints Plan

Do not scael from thsi drawnig eelctronciayll or manuayll, use wrttein dmi ensoin onyl.

A dllmi ensoins aren i mmillieters unelss stated otherwsie.

Thsi drawnigs i produced for usen i thsi proejct onyl and may not be used for any other purpose. Lanpro accepts noai lbtyili or responsbityili for the use of thsi drawnig other than the purpose for whciht w i as nitendedn i connecotin wthi thsi proejct as recordedn i theetl tie fidls P'urpose of Issue &'D 'rawnig Status Code.'

Thsi drawnig may not be reproducedn i any form wthiour proir wrttein agreement of Lanpro.

© Crown copyrgiht and database rgihts 20 24 Ordnance Survey Licence Number 0100031673

• 6516
• 6517

The Construcotin (Desgin and Management) Regualotins 2015 (CDM

2015) makes a dsinticotin between domescti and commercai cleilnts and ounitles the duetis you, as ceilnt, have under Heathl and Safety Law (HSE).

These duetis can be found at: http://www.hse.gov.uk/construcotin/cdm/2015/responsbietiilis.html sIt i your responsbityili as a ceilnt to make yoursef alware of your roels and responsbietiilis under CDM 2015 and act accordnigyl.

G4

Key

Category A Tree

Stem Position & Canopy Spread HIGH Quality / Value

G3

• Category B Tree Stem Position & Canopy Spread MODERATE Quality / Value

• Category C Tree Stem Position & Canopy Spread LOW Quality / Value

• 6513
• 6514

Category U Tree

Stem Position & Canopy Spread Unsuitable for Retention

Rpa

Root Protection Area

Tree Shadow Extents

Notes:

Please note, tree positions are based on a topographical survey provided by the client.

G2

• 24

24.5

24.5

24.5

• 24.5

24.5

24.5

24.5

24.5

24.5

24.5

• 25

25.5

25.5

• 25.5

25.5

23.86

23.5

VP

G5

SLABS

• 6506
• 6507

23.5

22.5

SHED

IL

BTP

22.5

POND

22.5

23.5

22.5

22.5

22.5

IL

OIL TANK

23.5

22.5

G11

G1

G6

SHED

23.96

22.5

SHED

Parkfield

23.5

22.5

22.5

Drain

G10

G7

21.5

22.5

RIBA STAGE

PURPOSE OF ISSUE

IN - INFORMATION 1

G9

DRAWING STATUS

• 6526
• 6527

S2 - SUITABLE FOR INFORMATION

PROJECT TITLE

Parkfield Ballasalla

CLIENT

Dandara Homes Limited

DRAWING TITLE

SCALE

Tree Constraints Plan

23.5

1:250 @A1

G8

DATE

DRAWN BY CHECKED BY

APPROVED BY

Drain

RW MG MG

July 25

Y:\1. Projects\6229 Parkfield, Ballasalla\04 Drawings\01 BIM\01 RIBA ST 0-3\01 WIP\03 CAD Dwg\MODEL FILES

DRAWING NUMBER

PROJECT NO DRAWING FIELDS REVISION

- - - - - -

-

7/11/2025 10:07 PM6229-LAN-XX-XX-DR-A-7101 Tree Constraints Plan RW

N

5 0 10 20 30m

Masterplanning & Urban Design

Landscape Architecture

Arboriculture

Manchester Office: Peter House, Oxford Street

1:250

Appendix 2 Tree Impact Plan

N

B87

To facilitate the development as proposed T6515 requires 1.5 meter lateral reduction to create construction clearance.

Notes

Do not scael from thsi drawnig eelctronciayll or manuayll, use wrttein dmi ensoin onyl.

B86

A dllmi ensoins aren i mmillieters unelss stated otherwsie.

6521 6520

Thsi drawnigs i produced for usen i thsi proejct onyl and may not be used for any other purpose. Lanpro accepts noai lbtyili or responsbityili for the use of thsi drawnig other than the purpose for whciht w i as nitendedn i connecotin wthi thsi proejct as recordedn i theetl tie fidls P'urpose of Issue &'D 'rawnig Status Code.'

B86

B87

B85

Thsi drawnig may not be reproducedn i any form wthiour proir wrttein agreement of Lanpro.

B85

© Crown copyrgiht and database rgihts 20 24 Ordnance Survey Licence Number 0100031673

B86

B84

Cdm 2015

B84

The Construcotin (Desgin and Management) Regualotins 2015 (CDM

2015) makes a dsinticotin between domescti and commercai cleilnts and ounitles the duetis you, as ceilnt, have under Heathl and Safety Law (HSE).

B83

B85

These duetis can be found at: http://www.hse.gov.uk/construcotin/cdm/2015/responsbietiilis.html sIt i your responsbityili as a ceilnt to make yoursef alware of your roels and responsbietiilis under CDM 2015 and act accordnigyl.

B83

To facilitate the development as proposed the complete removal of 3 category B trees, 13 category C trees and 3 category C Groups is required. Further information on these removals can be found in the associated Arboricultural Impact Assessment and addendum.

B82

B84

G4

Key

Category A Tree

Stem Position & Canopy Spread HIGH Quality / Value

• Category B Tree Stem Position & Canopy Spread MODERATE Quality / Value

• Category C Tree Stem Position & Canopy Spread LOW Quality / Value

G3

B83

Category U Tree

Proposed Footpath within the RPA of T6524 and 6525 partially located within an area of existing compact access.

B82

Stem Position & Canopy Spread Unsuitable for Retention

B81

• 6513
• 6514

P7

P9

Rpa

B80

Root Protection Area

B82

B80

Existing Tree

P8

Stem Position & Canopy Spread Removed to facilitate development

B79

P6

Tree Shadow Extents

• B80
• B81

Proposed Tree Pruning/Removal Works

G2

P5

B81

Notes:

Please note, tree positions are based on a topographical survey provided by the client.

Drainage plans left in original colours

P4

B79

VP

G5

B78

P3

P15

P10

B77

• 6506
• 6507

P14

P2

P13

B76

IL

P11

IL

Block paved shared surface road.

P1

G11

P14

G1

P14

P12

G6

P13

P13

P18

P18

P17

P17

P19

P18

G10

G7

P17

P16

Proposed boundary fencing located within the RPA's of all retained trees excluding 6524 and 6525. Protection off all retained trees can be ensured through the attachment of a suitably worded condition to a planning approval outlining the need for and Arboricultural Method Statement and Tree Protection Plan.

RIBA STAGE

PURPOSE OF ISSUE

PL - FOR PLANNING 3

The partial removal of two<br><br>category B tree groups, and one<br>category C tree group is required to facilitate the Site access footpaths. Further information on these removals can be found in the associated Arboricultural Impact Assessment Addendum.<br>

DRAWING STATUS

S2 - SUITABLE FOR INFORMATION

G9

PROJECT TITLE

Parkfield Ballasalla

• 6526
• 6527

CLIENT

P20

Dandara Homes Limited

DRAWING TITLE

SCALE

Tree Impact Plan

1:250 @A1

DATE

DRAWN BY CHECKED BY

APPROVED BY

RW MG MG

Sept 25

Y:\1. Projects\6229 Parkfield, Ballasalla\04 Drawings\01 BIM\01 RIBA ST 0-3\01 WIP\03 CAD Dwg\MODEL FILES

G8

DRAWING NUMBER

PROJECT NO DRAWING FIELDS REVISION 6229 LAN XX XX DR A 7201 P01 10/1/2025 4:13 PM6229-LAN-XX-XX-DR-A-7201 Tree Impact Plan RW

5 0 10 20 30m
