Design Statement Appendix Photos and Plans

Photograph 1 - Front elevation to 12 Lime Street {{image:141706}}

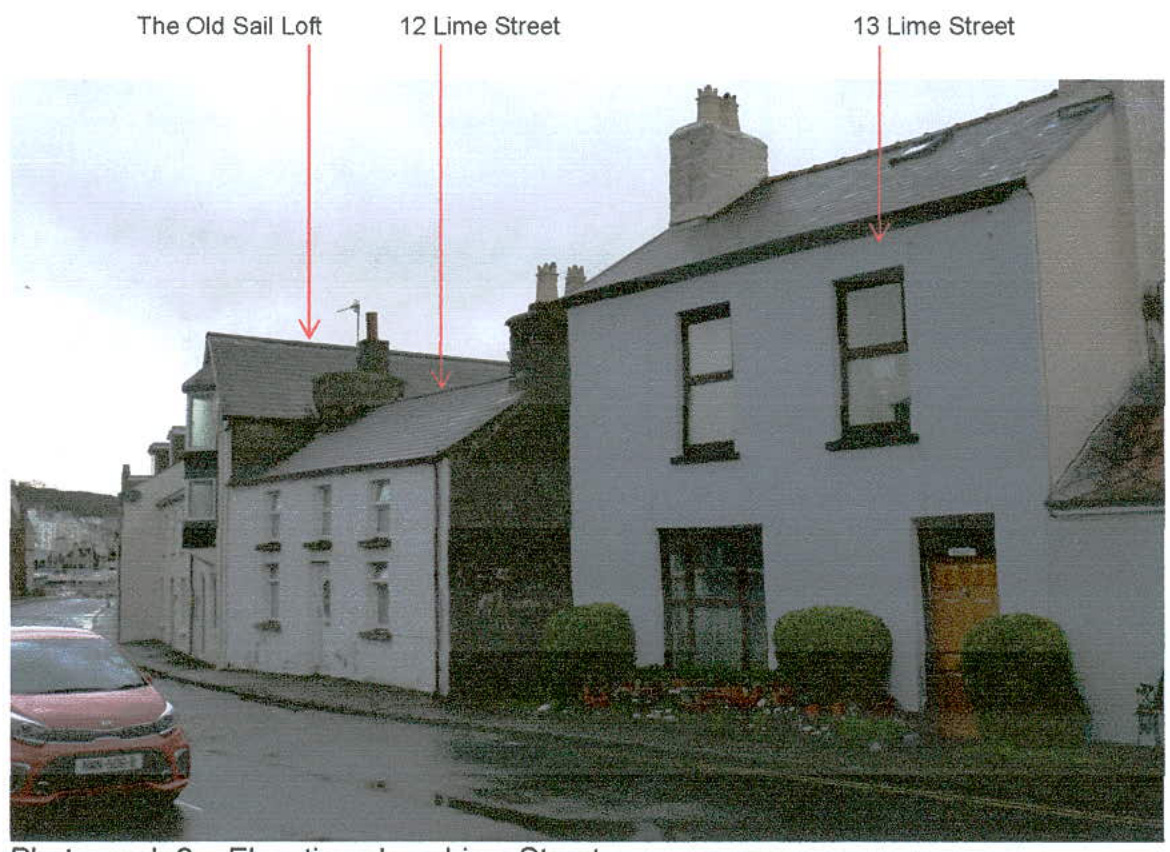

This is a street-level photograph showing a row of buildings on Lime Street, with red arrows identifying 'The Old Sail Loft', '12 Lime Street', and '13 Lime Street'.

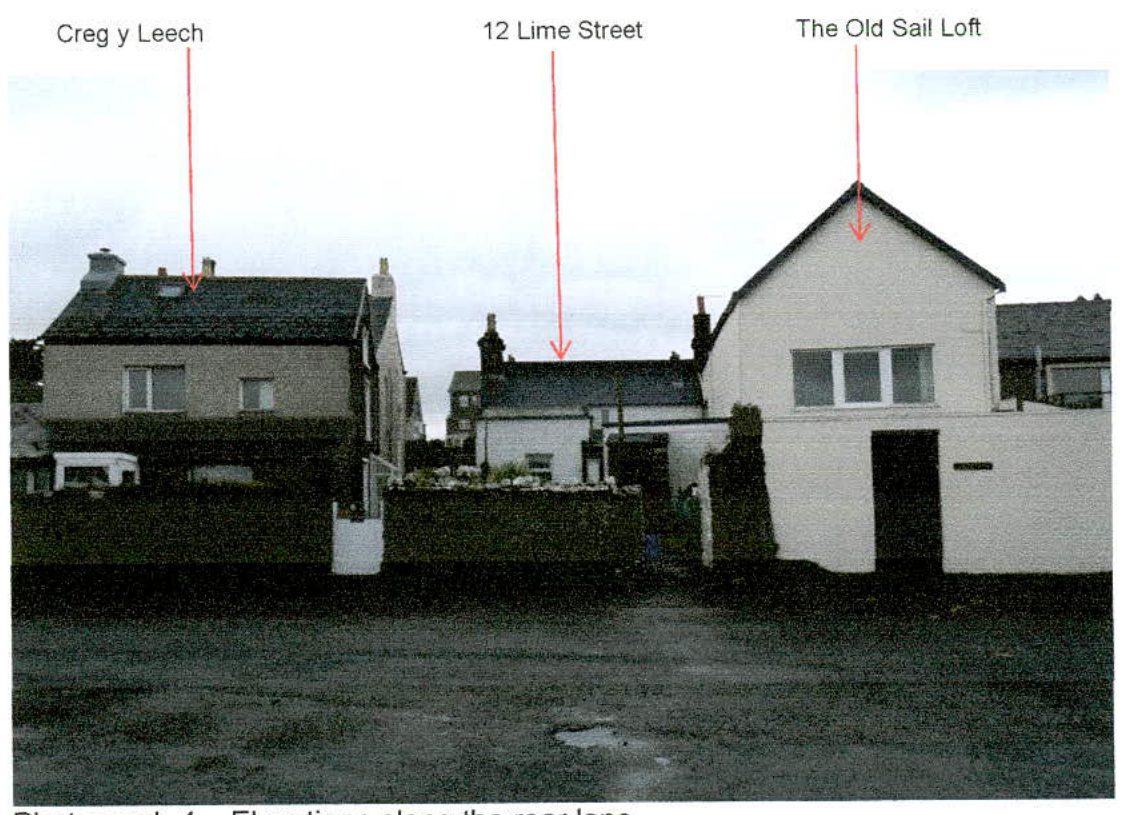

A photograph showing a street view of three residential properties labeled with red arrows, including 'The Old Sail Loft' and '12 Lime Street'.

Photograph 3 - Rear elevation showing 'lean to' extensions \& flat roofed workshop that are to be removed. It also illustrates the mass of the adjacent Old Sail Loft

Photograph 4 - Elevations along the rear lane.

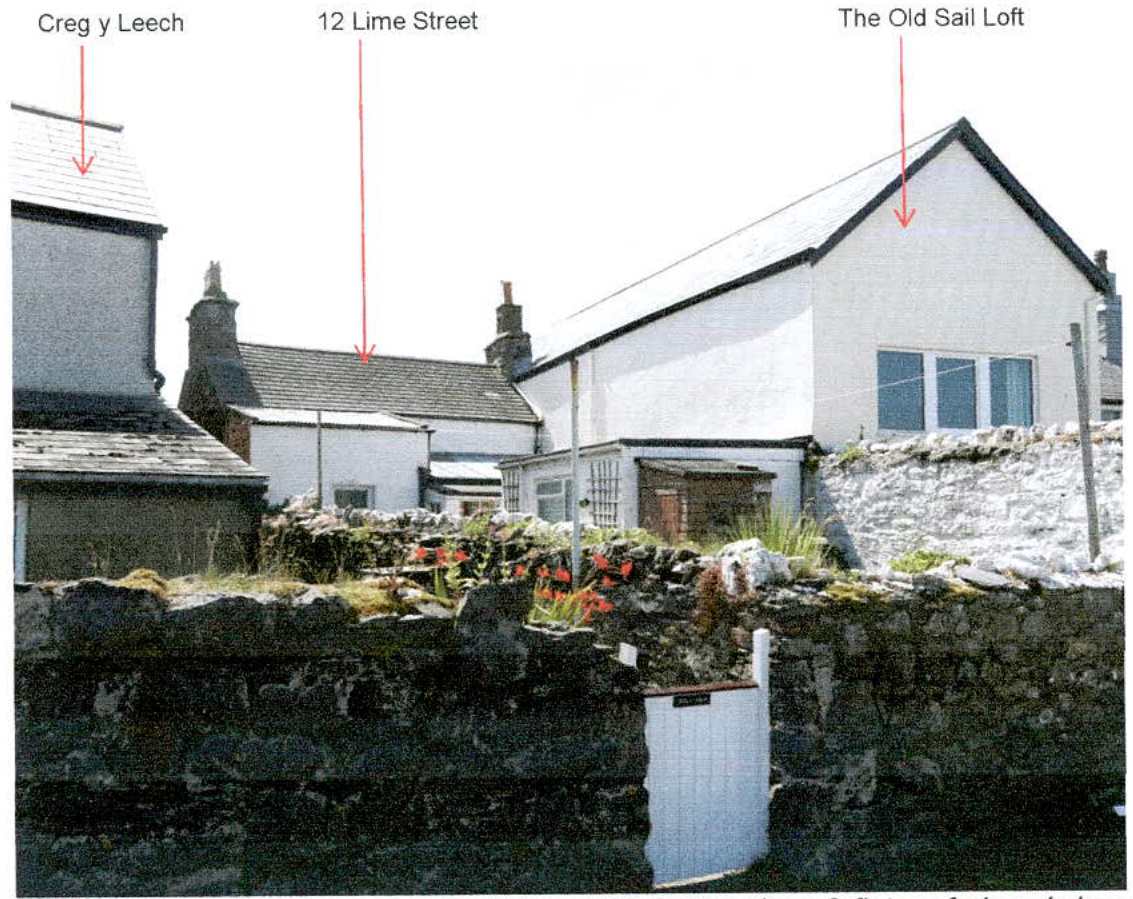

A photograph showing a street scene with three labeled properties: Creg y Leech, 12 Lime Street, and The Old Sail Loft, separated by stone walls.

Photograph 5 - Side elevation of Creg y Leech \& 13 Lime Street in relation to the rear yard of 12 Lime Street

Photograph 6 - Rear elevations of Creg y Leech \& 12 Lime Street

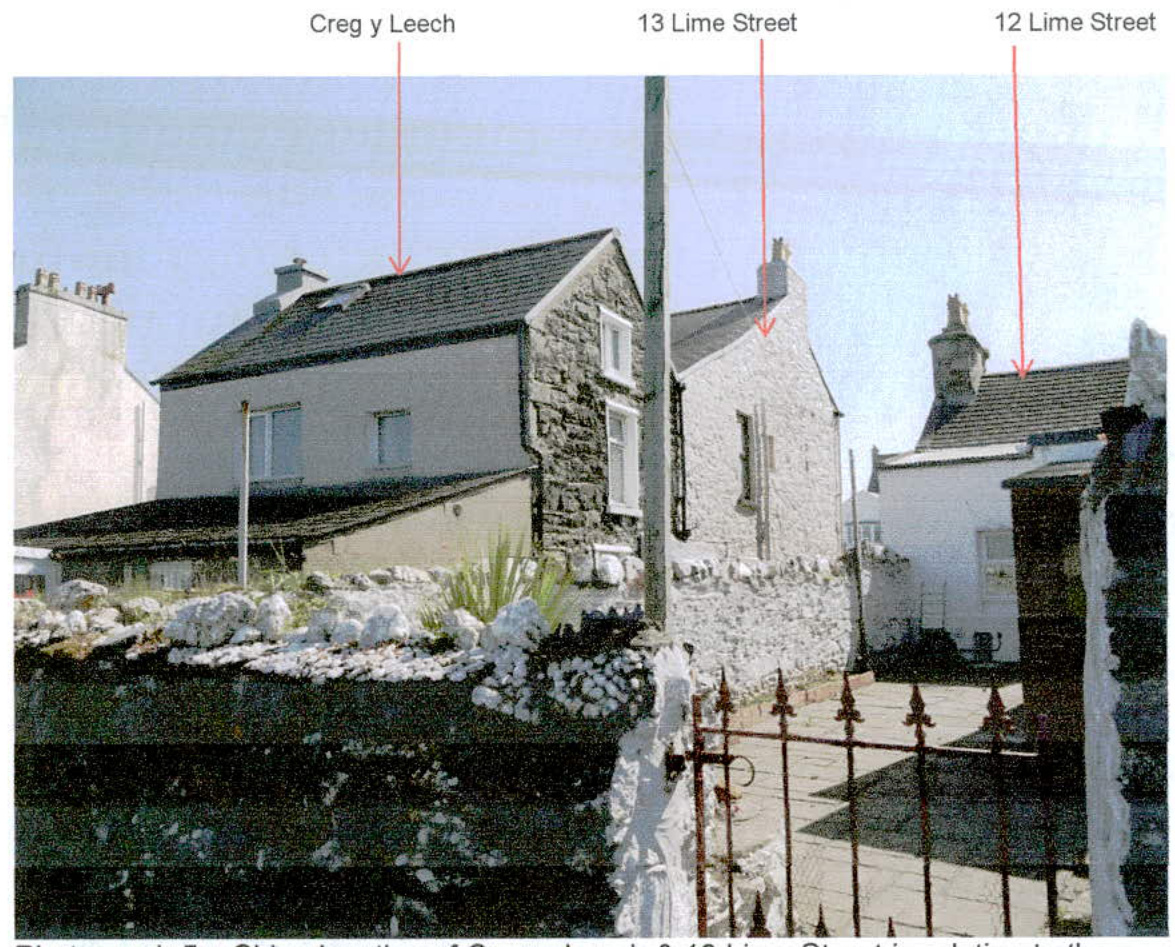

A photograph showing the existing exterior of 'Creg y Leech' and neighboring properties at 12 and 13 Lime Street, with red arrows indicating the buildings.

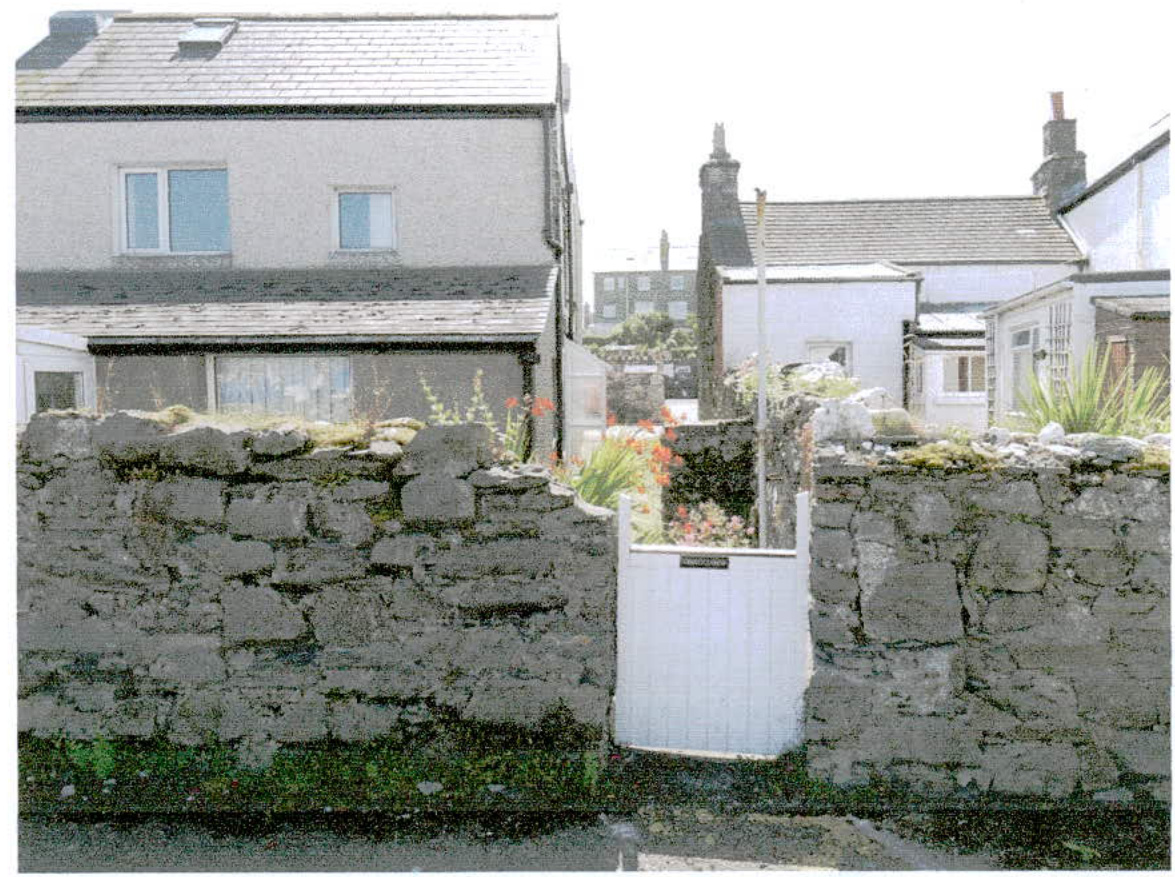

A street-level photograph showing a dry stone wall with a white gate in the foreground, behind which are residential houses with slate roofs.

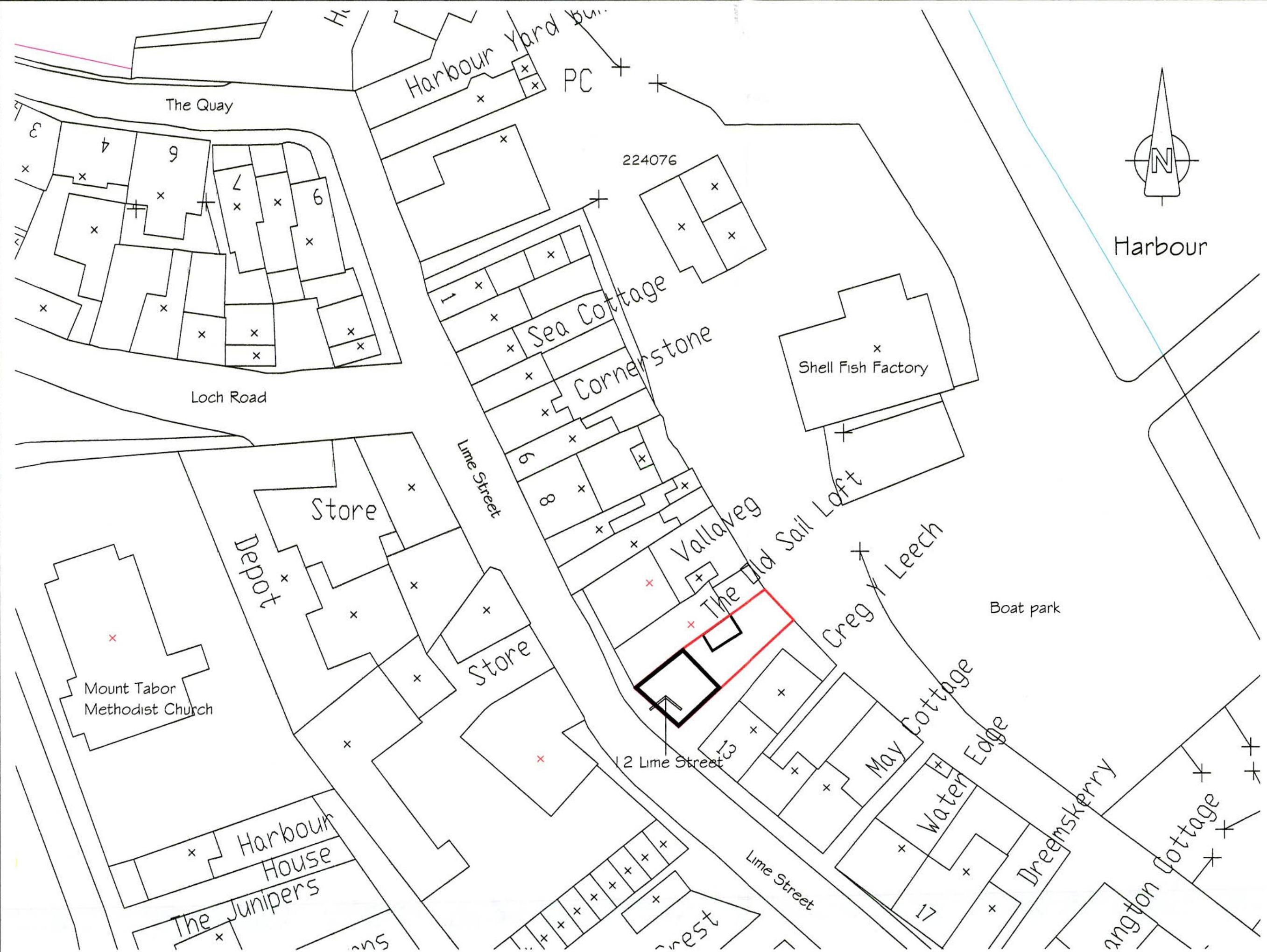

A black and white site location plan highlighting the property at 12 Lime Street with a red and black outline. The map displays surrounding streets, building footprints, and nearby landmarks such as a harbour and Shel... — A black and white site location plan highlighting the property at 12 Lime Street with a red and black outline. The map displays surrounding streets, building footprints, and nearby landmarks such as a harbour and Shell Fish Factory.

Design Statement Appendix Photos and Plans
