Slip Box.
External Light.

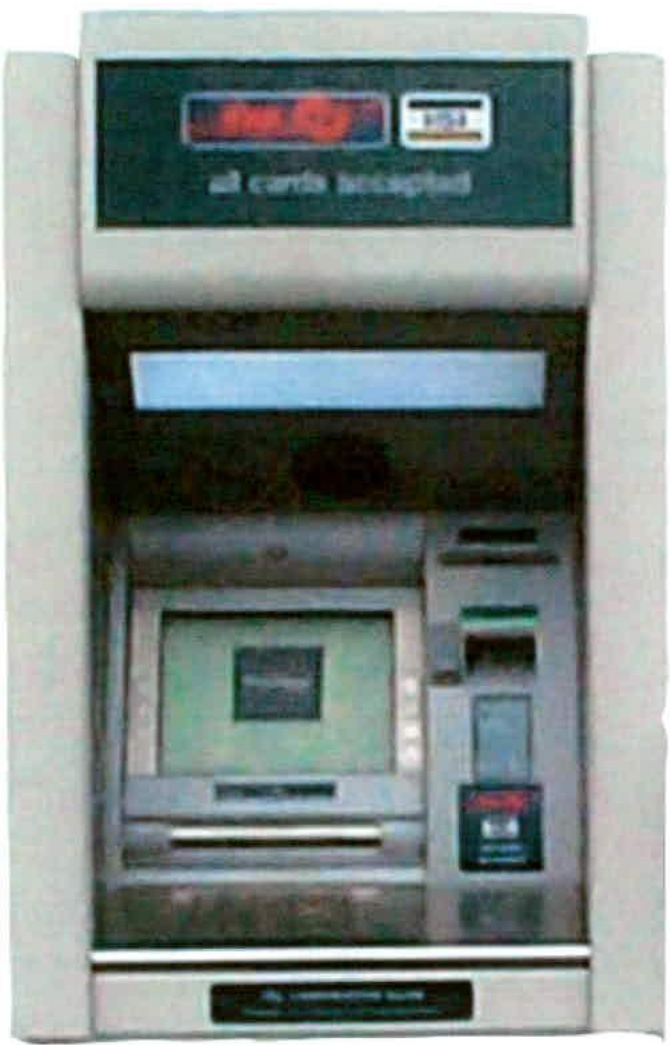

Wincor Nixdorf
Deposit slot
Consumer keyboard center key (S/pip)
Top function key
Consumer monitor top line
Statement or breakbox
Receipt printer
Card holder
Envelope presenter
Cash out
Head phone
A
B
C
D
E
F
G
H
I
K
Height (from bottom of split inc. installation frame) mm
900
1137
1183
1183
1243
1149
45.24
956
1129
Depth (from front vertical edge) mm
84
240
240
240
240
240
8.78
180
7.09

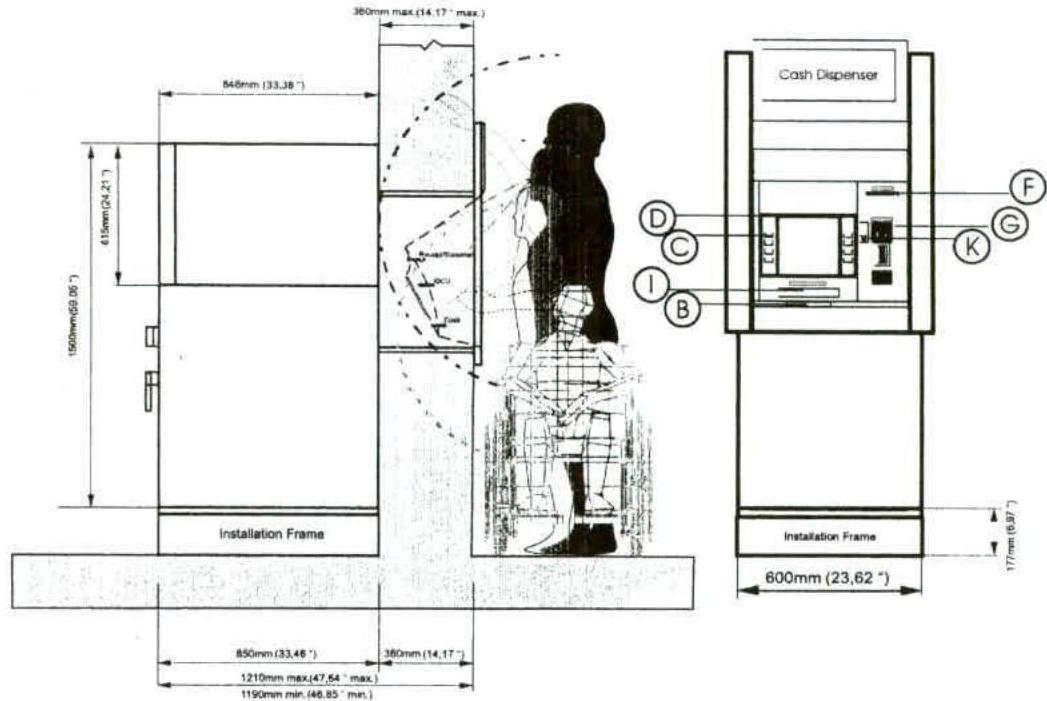

A technical architectural drawing detailing the installation of an external ATM, featuring precise dimensions and a wheelchair user silhouette to demonstrate accessibility compliance.
ProCash 2050
front means: measurements taken from front of wall
side panels not considered measurement wise
Americans with Disabilities Act, Accessibility Guidelines (ADAAG)
High forward reach - 1220mm (47.24") Low forward reach 360mm (14.96") (a) Reach depth not more than 255mm - 1370mm max ht (10.04" - 53.94" max ht) (b) Reach depth more than 255mm (10.04")
Beach depth - max ht
255 - 1370 mm (10.04" - 53.94") 260 - 1360 mm (11.02" - 53.54") 305 - 1345 mm (12.01" - 52.95") 330 - 1335 mm (12.99" - 52.56") 355 - 1310 mm (13.98" - 51.57") 380 - 1295 mm (14.96" - 50.98") 405 - 1285 mm (15.94" - 50.59") 430 - 1270 mm (16.93" - 50.00") 455 - 1255 mm (17.91" - 49.41") 485 - 1245 mm (19.09" - 49.02") 510 - 1230 mm (20.08" - 48.42") 535 - 1205 mm (21.06" - 47.44") 560 - 1195 mm (22.05" - 47.58") 585 - 1180 mm (23.03" - 46.46") 610 - 1170 mm (24.02" - 46.06")
Forward and parallel approach-operable ports will be placed within at least one of the reach ranges in para (1) or (2) above
Canadian Standards Association (CanSA)
All functions shall be within easy reach of persons using wheelchairs and scooters 1200mm max. (47.24" max.)
Forward reach (with a kneelsole)
1100 mm max (43.31" max.)
Height above the ground, with a depth limit of 800 mm (19.96") for grip and 600mm (23.62") for touch
Sidewise reach 1400 mm max. (55.12" max). Height above the ground:

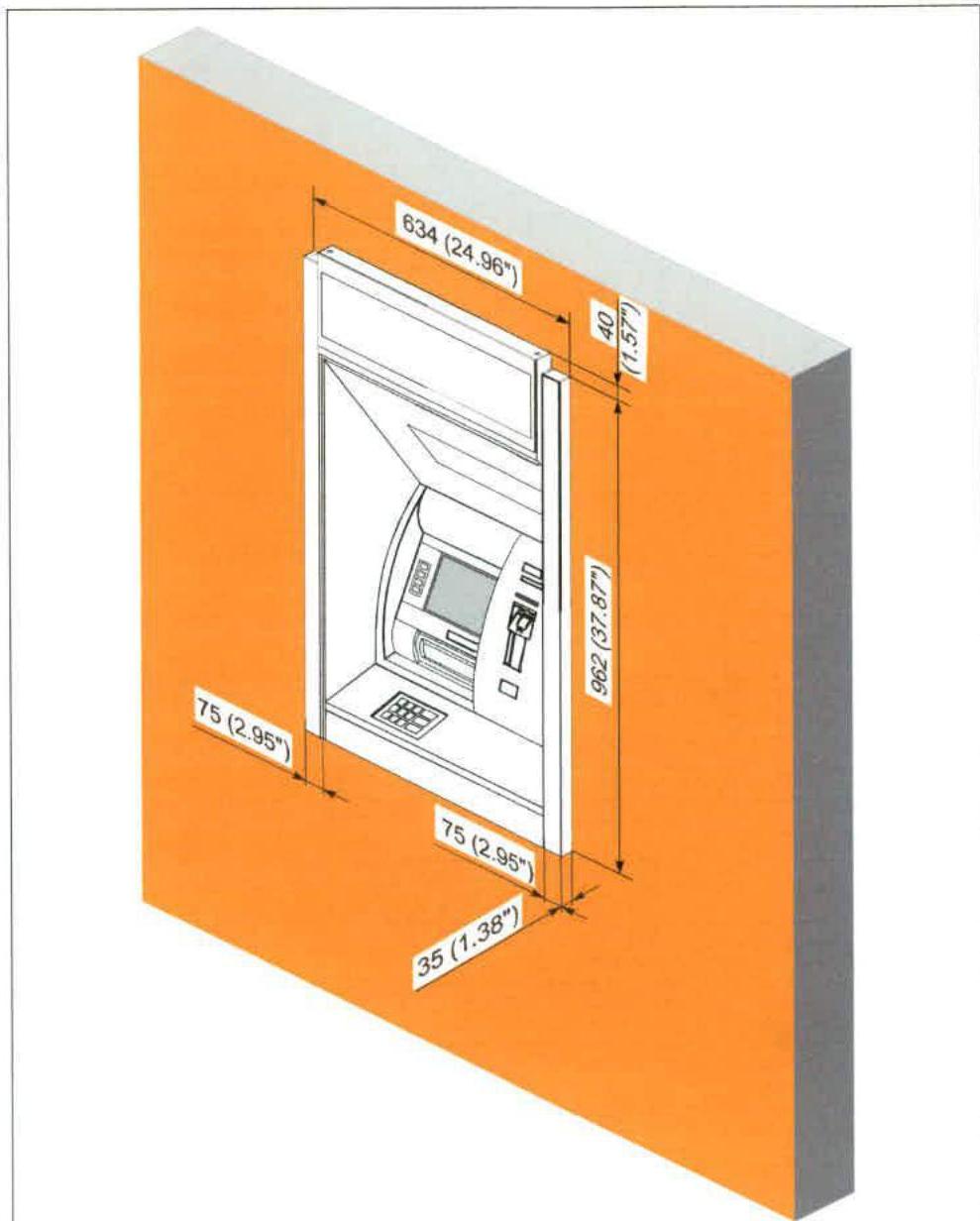

ProCash 2050
standard installation height 900mm (35.43") (position of the keyboard center key S/pip)

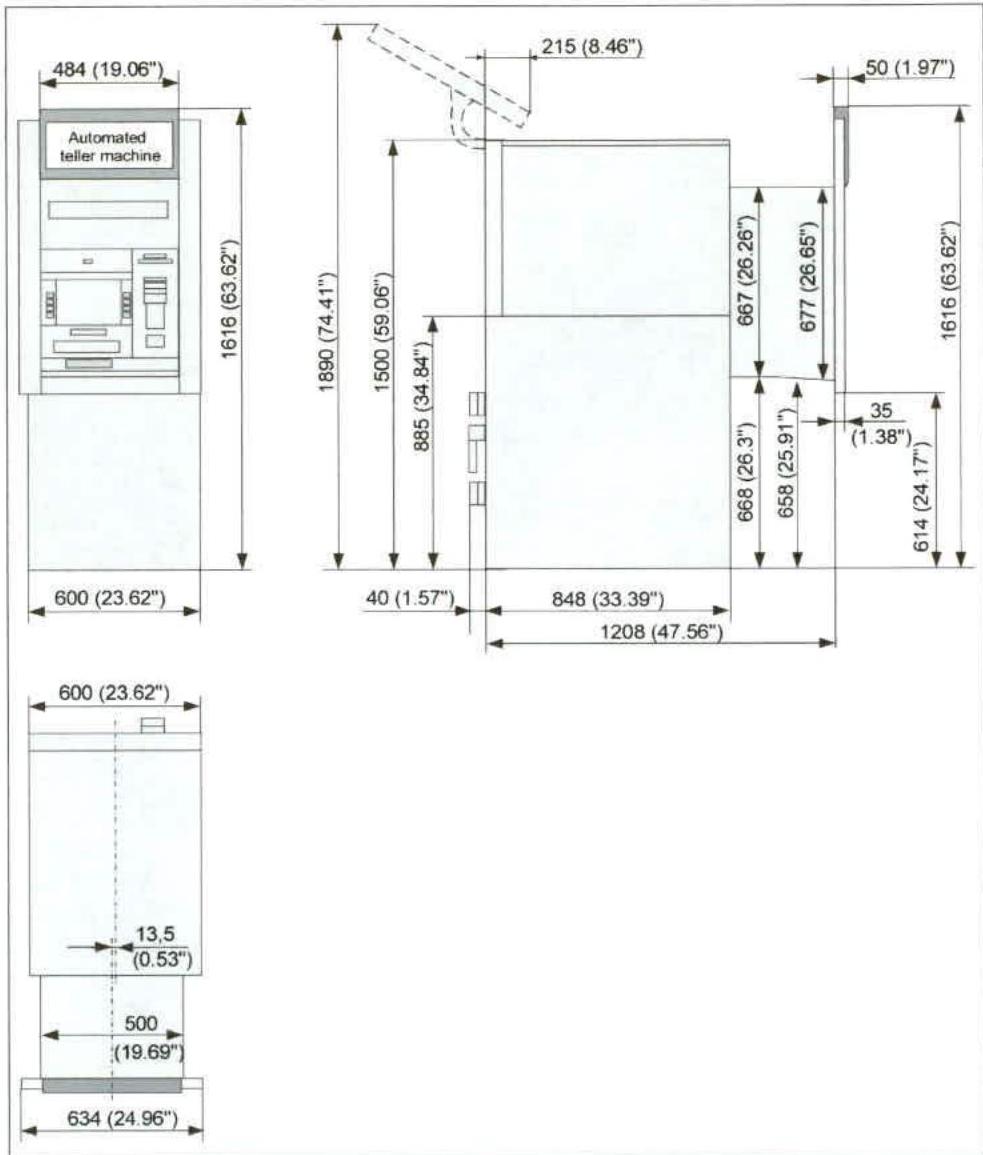

Device with illuminated signage
Technical architectural drawings showing elevations and dimensions for an automated teller machine (ATM) installation unit.
View of device with illuminated signage

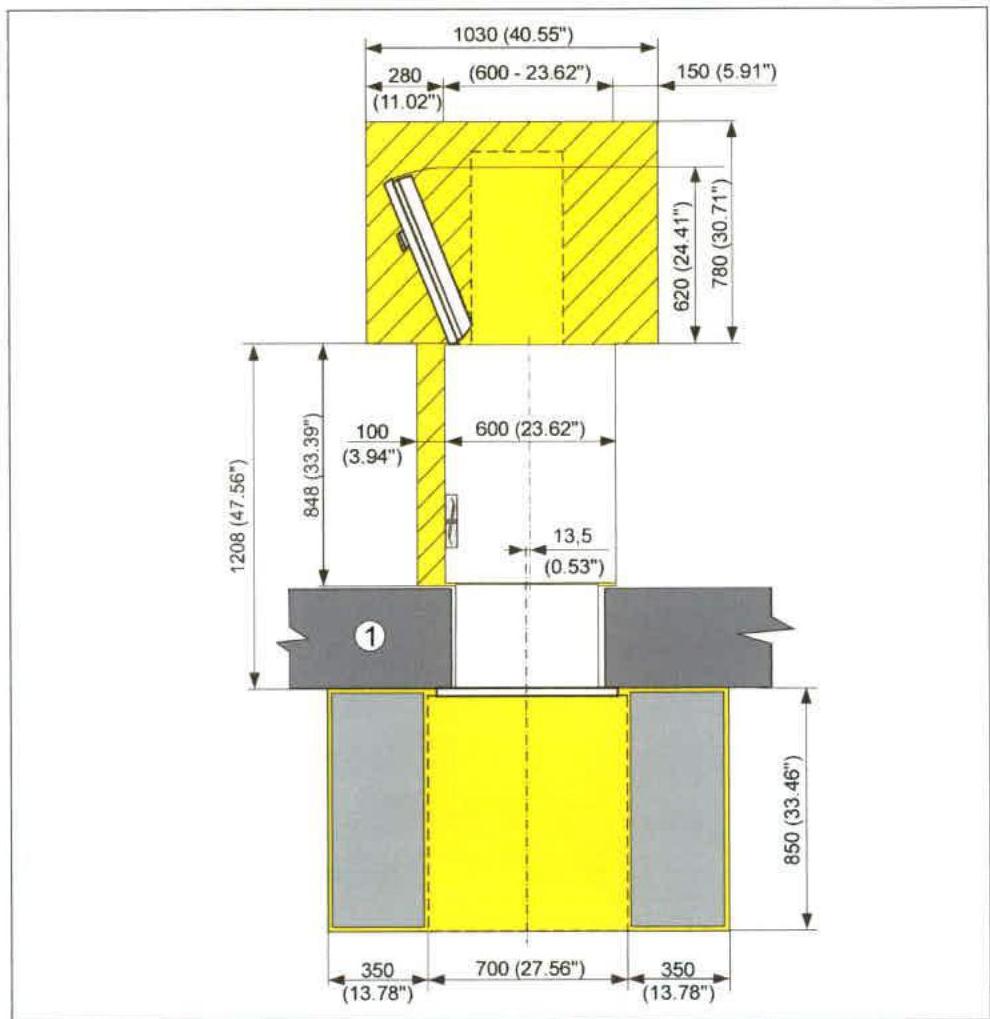

Required operation and maintenance space
Architectural drawing displaying detailed dimensions and cross-sections for an external ATM installation.
Required service space
Additional maintenance space required either on the left or on the right side of the device
1 Wall
