Andreas Road, Isle of Man, IM7, United Kingdom Sian & Adam Meeuwsen 15 Sep 2020 SYSTEM OVERVIEW 36 PV modules 2 Inverters 36 Optimizers
Simulation Results
Installed DC Power
12.24kWp
Max Achieved AC Power
10.00kW
Annual Energy Production
11.14MWh
CO
CO2 Emission Saved
3.13t
Equivalent Trees Planted
144
Max Achieved DC Power
11.95kW
DC/AC Oversizing
119%
Max Active AC Power
10.00kW
Performance Ratio
79%
Performance Index
911kWh/kWp

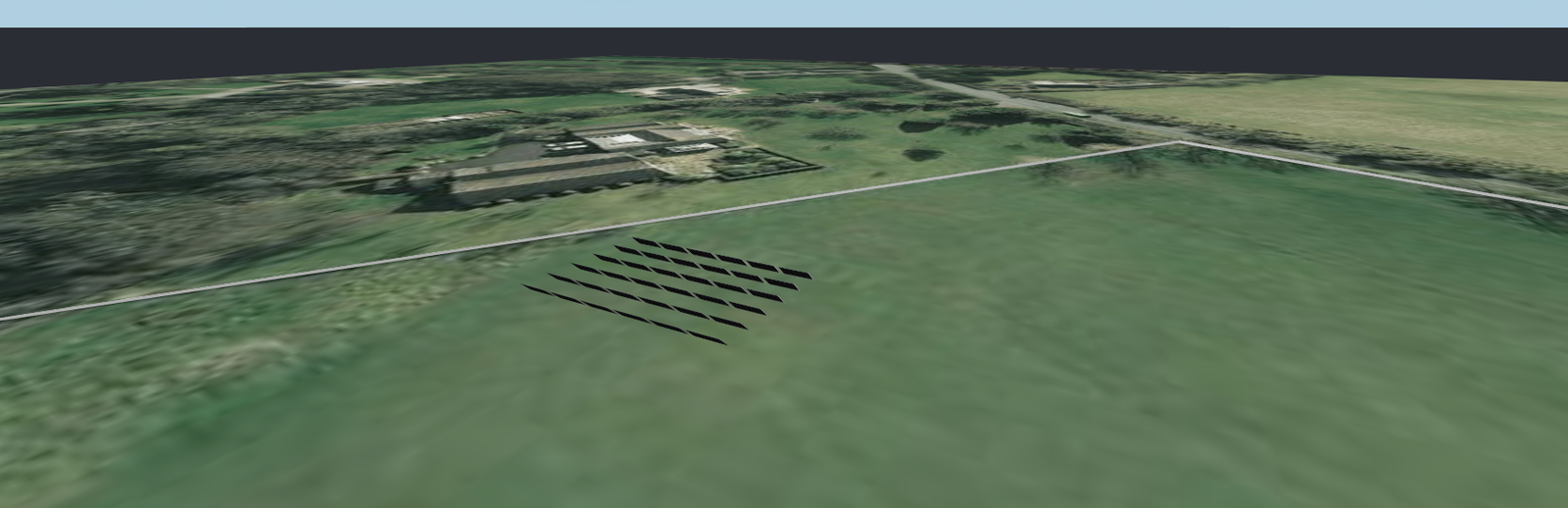

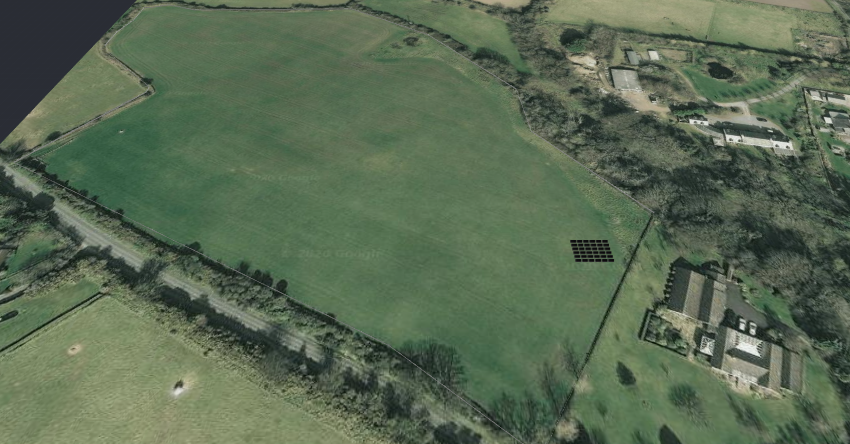

Ground Mout System
Andreas Road, Isle of Man, IM7, United Kingdom Sian & Adam Meeuwsen 15 Sep 2020 SYSTEM PRODUCTION CONSUMPTION Total Production - 100 % Total Consumption - 100 %
11.14 MWh
13.81 MWh
Self-consumption - 42 %
Self-consumption - 34 %
11.14
13.81
4.72 MWh
4.72 MWh
MWh
MWh
Export - 58 %
Import - 66 %
6.42 MWh
9.09 MWh
ESTIMATED MONTHLY ENERGY
Solar Production Consumption Self-consumption Clipped Energy
MWh
0
0.5
1
1.5
2
Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Total clipped energy: 0.28%
Andreas Road, Isle of Man, IM7, United Kingdom Sian & Adam Meeuwsen 15 Sep 2020 SYSTEM LOSS DIAGRAM Global horizontal irradiance Global irradiance on PV modules Shading irradiance loss
Reflection loss Energy after PV conversion
Irradiance level loss Temperature loss Shading electrical loss Yield factor loss Optimizer efficiency loss Module quality loss DC Ohmic wiring loss Energy after DC losses Inverter efficiency loss Inverter clipping loss Produced energy Exported energy
987.00 kWh/m²
12.39 MWh
11.49 MWh
11.14 MWh 6.42 MWh
+16.77%
-9.2%
-3.27%
-1.78%
-0.3%
-3.31%
-0.46%
-1.31%
+0.37%
-0.68%
-2.7%
-0.28%
SIMULATION PARAMETERS
LOCATION & GRID
Time zone GMT+1 (Isle_of_Man) Weather station Stranraer (66.68 km away) Station altitude 14 m Station data source Meteonorm 7.1 Grid 400V L-L, 230V L-N Export limit to grid 10 kW
LOSS FACTORS
Near shading Enabled Albedo 0.20 Soiling/Snow 0% Incidence angle modifier (IAM), ASHRAE b0 param. 0.05 Thermal loss factor Uc (const) Flush mount 20 Thermal loss factor Uc (const) Tilted 29 LID loss factor 0% System unavailability 0%
