Cold or Warm White LED colour. RGB RF remote control colour change available on request. Non-standard brackets available upon request. Standard and non-standard colours. Photo electrical cell switches.
Latest high lighting chip giving 1650 Lumens per metre LED output. Only 14.4 watts per metre power consumption $75 \%$ energy saving compared to Fluorescent. 24 volt input, less current less voltage drop. 6000 k cool white or 3000 k warm white 120 degree angle. IP65 protected, 50,000 hours+ lamp life. 5 year Warranty. Full CE certification and ROHS compliant.
Epoxy encapsulated fully isolated case with IP67 protection. Constant voltage design. Short circuit, over current, over voltage protection. Fitted onto quick release slide in Gear Trays. Full CE certification and ROHS compliant.

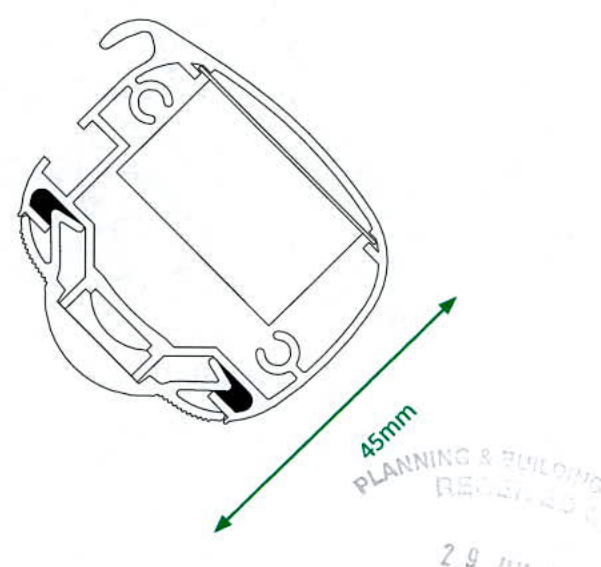

Specially designed 45 mm aluminium extrusion supplied up to 6000 mm lengths which can be joined together using cast aluminium connectors. Die cast aluminium end caps with rear cable entry Standard 300 mm multi brackets. Snap-in polycarbonate 90 degree magnifying lens diffuser. Casing sealed and certificated to IP65. Full CE certificate and 5 year parts warranty. Conforms to BS EN 60598-1:2015 and BS EN 60598-2-1:1989 'UK Deviations Only'. (The manufacturer's reserve the right to alter specifications without prior notification).
Price will include: Polyester powder coated black or white and 300 mm multi brackets. Protected by UK registered design application 6021380 by our supplier

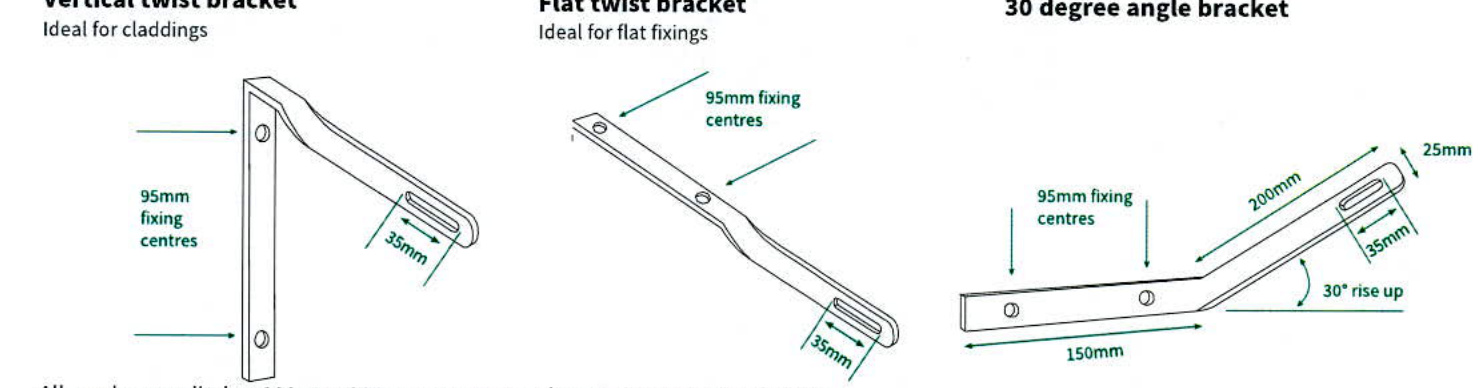

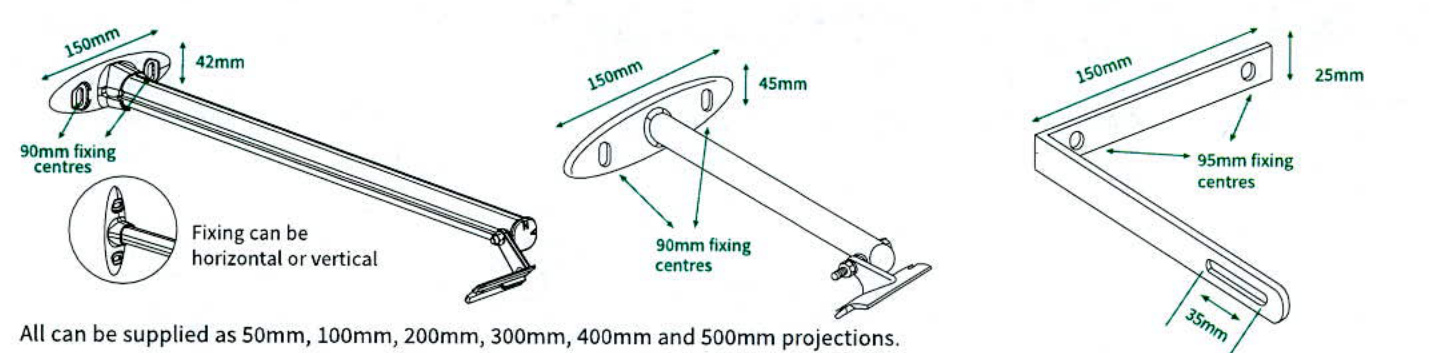

All can be supplied as $50 \mathrm{~mm}, 100 \mathrm{~mm}, 200 \mathrm{~mm}, 300 \mathrm{~mm}, 400 \mathrm{~mm}$ and 500 mm projections.
others
Pictorial bracket set Ideal for back to back signs {{image:215167}}
970mm land bracket For free standing billboards \& large format signs {{image:215168}}
650mm gable bracket For wall mounted billboards and large format signs {{image:215169}}
Telephone: 01689606342 Order from Exterior Lights UK Ltd P.O. Box 794
Orpington Kent BR6 1FB.

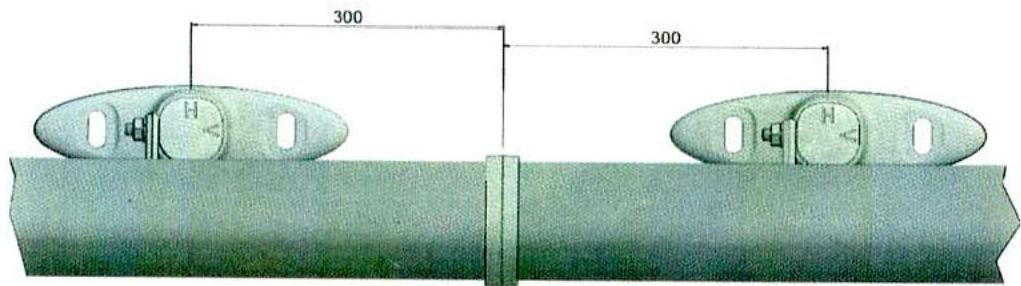

Preparation: For Best Results Fix Brackets within 300mm Either Side of Join

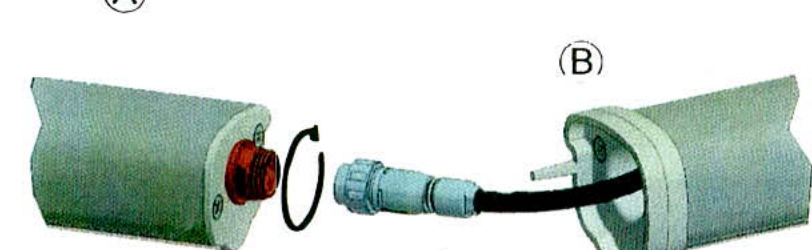

A Plug Male & Female Connector Together & Twist to Seal

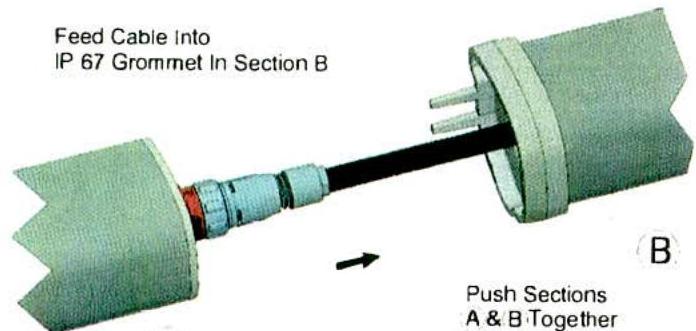

A Push Sections A & B Together

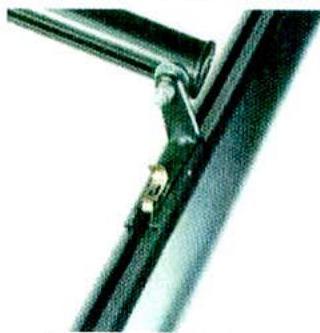

Bolt At Rear Into Slotted Prong
1.1 This instruction sheet should be passed on by installer to the end user for maintenance purposes. 1.2 It is recommended that the fitting is installed by a competent electrician in accordance with these instructions and appropriate wiring regulations. 1.3 These sign lights should not be modified. No responsibility will be accepted for any modified products or for any damage caused as a result of their modification. 1.4 It is not recommended to install the fitting in areas that are liable to reach an ambient temperature in excess of $35^{\circ}\mathrm{C}$. 1.5 To clean fittings use a soft damp cloth and dry immediately. Do not use any chemical/abrasive cleaner.
Before carrying out any servicing on this luminaire, ensure that the mains supply is fully isolated.
1.6 All fittings are class 1 fittings and should, therefore be earthed. 1.7 The fitting is not suitable for dimming 1.8 The fitting comes complete with an integral power supply and pre-wired with a 0.75M 3 core supply cable. The wires in this mains cable are coloured in accordance with the following code
SHEEN & YELLOW EARTH BLUE - NEUTRAL SHOWN - LIVE
A suitable IP rated connection must be used at the other end.
1.9 Type Y Attachment - If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by Portland Lighting Ltd or their service agent or a similar qualified person in order to avoid a hazard. 2 The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
If you need any help with the installation or maintenance of the sign lights, please contact us on 01689 606342
