SolarEdge Designer Report

Spaldrick Care Home

Installed DC Power 25.53 kWp	Max Achieved AC Power 21.50 kW	Annual Energy Production 25.92 MWh	CO2 Emission Saved 10.16 t	Equivalent Trees Planted 467
Max Achieved DC Power 25.14 kW	DC/AC Oversizing 117%	Max Active AC Power 21.50 kW	Performance Ratio 89%	Performance Index 1,015 kWh/kWp

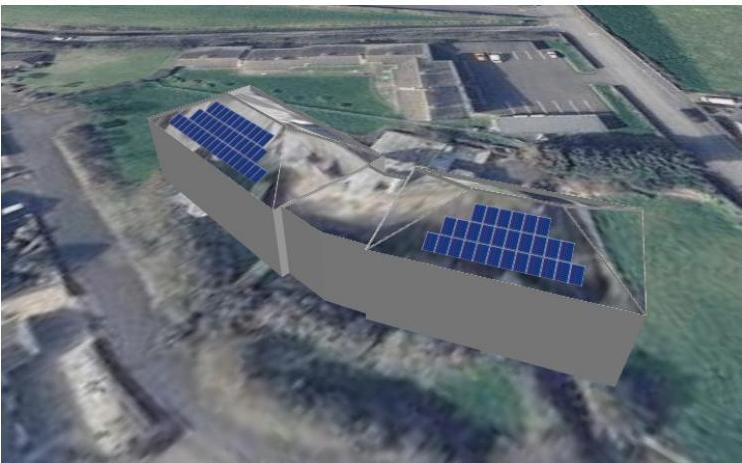

Bradda Road, Port Erin, Isle of Man, IM9 6LL, Isle of Man | 27 Jan 2023 {{image:695077}} {{image:695078}} SYSTEM OVERVIEW

69 PV modules

2 Inverters

69 Optimizers

# M	M			P	w	R	g	y	O	Az	T
4	JAS	, JAM6 D	/MB	5.						6°	5°

Bradda Road, Port Erin, Isle of Man, IM9 6LL, Isle of Man | 27 Jan 2023

SYSTEM PRODUCTION

CONSUMPTION

ESTIMATED MONTHLY ENERGY

PV MODULES

LOCATION & GRID	LOSS FACTORS
Time zone	GMT (Isle_of_Man)	Near shading	Enabled
Weather station	Isle of Anglesey (77.05 km away)	Albedo	0.20
Station altitude	8 m	Soiling/Snow	0%
Station data source	Meteonorm 7.1	Incidence angle modifier (IAM), ASHRAE b0 param.	0.05
Grid	400V L-L, 230V L-N	Thermal loss factor Uc (const) Flush mount	20
		Thermal loss factor Uc (const) Tilted	29
		LID loss factor	0%
		System unavailability	0%

Bradda Road, Port Erin, Isle of Man, IM9 6LL, Isle of Man | 27 Jan 2023 PV MODULES (CONTINUED)

# Module	Model	Peak power	Racking type	Orientation	Azimuth	Tilt
28	JA Solar, JAM60D20-370/MB	10.4 kWp			160°	25°
Total: 69		25.5 kWp
